Where Speed Meets Stability in CI Flexo Printing

You’re running a CI flexo press at high speed. The material shifts. Registration drifts. Suddenly rolls of printed material are off-spec. The culprit is often inconsistent web tension—a problem that grows worse as roll diameter changes. Xinxin’s flexo auxiliary equipment, including the slapping machine, addresses this directly. An Auxiliary Equipment component that combines precise servo tension control, automatic roll changing, and efficient drying—all packaged for seamless integration into high-speed CI flexo production lines. This guide covers how the slapping machine works, what materials it handles, and why modular integration matters for flexible packaging converters.

How Tension Control Shapes Print Consistency

At the heart of Xinxin‘s auxiliary equipment is a closed-loop tension control system. Servo motors and PLC systems work together to maintain material tension within a stable range, with corrections occurring in real time as roll diameter decreases or machine speed changes.

Unlike manual adjustments that react after problems appear, automated tension control prevents issues before they start. As one of the key roles of modern tension control systems, it directly manages substrate stress throughout the press stages, compensating for variations caused by changing roll diameter. Without this precision, printers face slack webs, material flutter, and eventual web breaks.

Most operators notice the problem first: registration drift that appears only when the roll is half empty; unexplained web breaks during acceleration; or print that shifts from front to back of the roll. These symptoms point to one root cause—tension is not being controlled dynamically. The slapping machine solves this by continuously sensing material behavior and feeding adjustments to the brake and pull roll systems.

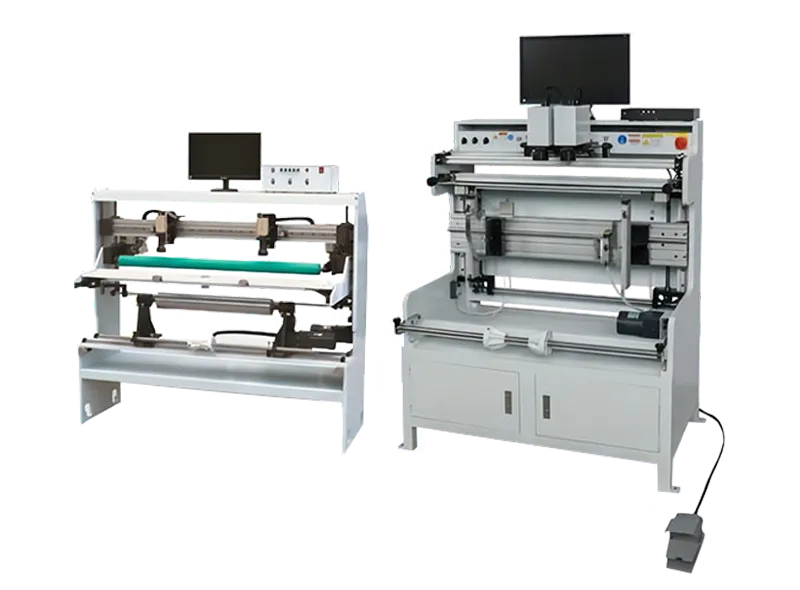

The Slapping Machine‘s Core Functions

The slapping machine operates as an integrated tension management station. Its primary functions include:

• Closed-loop tension sensing. Load cells or floating rollers measure material tension continuously and feed data to the PLC. The system compares actual tension against the target and calculates the required correction.

• Servo-driven braking control. At the unwind, servo motors adjust braking force to prevent over-pull when the roll is full and under-pull as the roll empties. This maintains consistent infeed regardless of roll diameter.

• Infeed pull roll synchronization. The slapping machine coordinates its pull force with the press’s main drive to avoid stretching sensitive materials like thin films or aluminum foil.

• Real-time fault detection. When tension exceeds programmed limits, the system triggers an alert or slows the press before a web break occurs, minimizing waste and downtime.

The result is a press that runs at its rated speed without constant operator attention to tension settings. Changeovers become faster because tension profiles can be saved and recalled for different substrates.

Drying and Material Handling as Part of the System

Beyond tension control, Xinxin‘s auxiliary equipment includes a high-efficiency hot air circulation drying system. Proper drying is especially critical when printing on non-absorbent substrates like film or metallic film, where ink cannot soak into the material.

The drying system works in coordination with the tension section. If drying capacity is insufficient, the press must slow down—but slowing changes tension dynamics. The integrated design allows the entire line to operate as a balanced system.

The auxiliary equipment also manages automatic roll changing. Turret unwind systems swap rolls without stopping the press, while tension control maintains stability throughout the splice cycle. Operators can run longer without intervention, and the consistent tension extends plate life and anilox roll performance.

Materials and Markets Served

Xinxin‘s auxiliary equipment handles diverse printing materials, including film, paper, cardboard, textiles, and metallic film. This substrate range makes it suitable for packaging converters running multiple product types.

Notably, Xinxin is the supplier of 90% of paper bag machine supporting printers in China. The equipment provides excellent printing results across a wide range of packaging and labeling materials, including e-commerce logistics packaging, customized e-commerce packaging, pharmaceutical packaging and labeling, food pouch packaging, personal care packaging, and janitorial packaging.

For a paper bag printer running multiple SKUs, the slapping machine enables faster changeovers between different paper weights and roll widths. For a flexible packaging converter switching between thin film and thick cardboard, the auto tension controller adapts without manual recalibration. The table below summarizes substrate compatibility:

Why Modular Integration Matters

One of the stronger features of Xinxin‘s auxiliary equipment is its ability to integrate with different press brands. Based on host speed, material properties, matching pneumatic/hydraulic systems, roll diameter, and interface protocols, the equipment can be configured for seamless operation.

This modular approach means a converter doesn’t need to replace an entire press line to upgrade tension control. The slapping machine can be added to existing CI flexo presses from various manufacturers, with custom gearing options available: synchronous wheel drive (360-degree motor point-and-shoot overlay), gear drive, or gearless drive system (full servo motor).

Integration covers mechanical mounting, electrical interfacing (PLC communication protocols), and control system harmonization. Xinxin provides professional training, remote diagnosis, and quick repair services to help customers maximize production efficiency and reduce equipment downtime. Fast response spare parts stock and specialized commissioning and repairs are part of the after-sales support package.

Slapping Machine vs. Traditional Tension Control

Traditional tension control on older flexo presses relied on mechanical dancer rollers and manual brake adjustments. Operators set tension at the start of a run and hoped it held. As roll diameter decreased or speed changed, tension drifted—and so did registration.

The slapping machine replaces this with automation. The PLC monitors tension continuously and adjusts braking force and pull roll speed in real time. The system compensates for roll diameter changes without operator intervention. Edge trim alignment stays consistent. Web breaks from tension spikes become rare.

The difference is most visible on long runs of expensive materials. A printer running metallic film for personal care packaging reported reducing waste from 8% to under 2% after installing automated tension control. The reduction in spoiled material paid for the auxiliary equipment within the first six months of operation.

A Look at the Xinxin Auxiliary Equipment Platform

The slapping machine is part of Xinxin‘s broader auxiliary equipment offering, designed for high-speed CI flexo printing production lines. It employs servo motors and PLC systems for precise tension control and includes automatic roll changing for continuous operation. The high-efficiency hot air circulation drying system ensures ink sets properly on non-porous substrates.

The equipment is environmentally friendly and low-cost to operate. Non-destructive cleaning significantly extends anilox roll lifespan while maintaining optimal ink transfer performance—a direct saving on consumables.

For converters serving e-commerce, pharmaceutical, food pouch, personal care, and janitorial packaging markets, the slapping machine helps maintain print consistency across diverse material types. Xinxin provides comprehensive technical support, professional training, remote diagnosis, quick repair, and fast response spare parts stock.

Making the Upgrade Decision

For converters currently running CI flexo presses without automated tension control, the decision often comes down to waste reduction. If you’re scrapping more than 5% of production due to tension-related registration errors, a slapping machine will pay for itself quickly. If you’re turning away short-run jobs because changeovers take too long, the ability to recall tension profiles for different substrates becomes a competitive advantage.

Most importantly, automated tension control removes variability from the printing process. Your press runs at the speed it was designed for. Your print quality stays consistent from the first meter of the roll to the last. And your operators spend less time chasing tension problems and more time running production.

【Request a quote from Xinxin for the Slapping Machine】 — Share your press brand, typical substrate range (paper, film, cardboard), average roll width, and monthly production volume. Their technical team will recommend the right configuration and integration approach for your CI flexo line.
