CI Flexo Printing Press | High-Precision Packaging Printing

XINXIN flexographic printing presses are designed for maximum durability and reliability, they are equipped with the most advanced components available internationally, and for many years, Xin xin's flexographic printing presses have been in perfect production condition, with low maintenance costs and consistent quality, to the great satisfaction of printing companies. These presses and printers have won printing quality awards worldwide every year.

4,6,8

Color unit

960mm,1260mm

Max.Printing width

230-1000mm

Printing length range

XXCI-A/B/C

CI Type Flexo Printing Machine

Color unit	4,6,8
Max.Printing material width	1000mm,1300mm Customizable
Max.Printing width	960mm,1260mm

Advantages of Xinxin CI Flexo Printing Machines

Ultra-High Printing Registration Accuracy

This satellite-type printing press delivers color registration precision as high as ±0.1mm, ensuring perfect pattern alignment during high-speed printing and minimizing waste.

Efficient Non-Stop Automatic Roll Change

Equipped with a dual-station rotary roll change system, enabling non-stop automatic roll changes to significantly enhance production efficiency and continuity.

Intelligent Automated Printing Unit

Features hydraulic automatic plate advancement/retraction and an intelligent anti-drying ink system, enabling one-button operation to guarantee print quality and streamline processes.

Powerful and Flexible Customization Capabilities

Supports customizable configurations for various materials (films, non-woven fabrics, etc.) and widths to meet diverse printing production demands.

Process Highlights of Xinxin CI Flexo Printing Machines

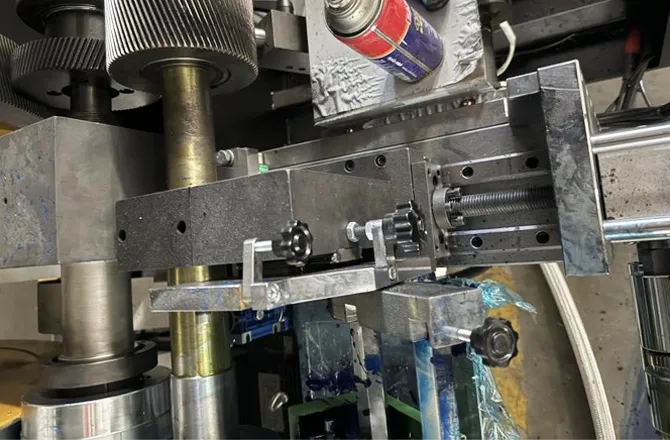

Printing unit

Adopting advanced production technology and high quality raw materials, but through efficient production and cost control, we are able to offer more competitive price compared with other brands in the market.

Hydraulically advances and retracts the plate. Automatically separates the plate and applies ink during shutdown, and automatically advances the plate for printing upon startup.

When the machine is stopped, the hydraulic cylinder pushes the anilox roller away from the plate roller, and the plate roller leaves the center roller, but the gears are still engaged. When the machine is turned on again for printing, it will automatically reset, and the color registration/printing pressure will remain unchanged.

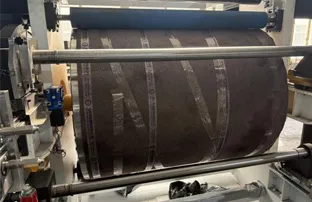

Double-walled central drum (including water cooler)

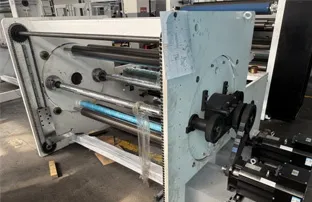

Air shaft type double station automatic non-stop rotation roll change

EPC ultrasonic webguide system

Custom/Optional Gearing Systems

Synchronous Wheel Drive (360-degree motor point-and-shoot overlay)

Gear Drive

Gearless Drive System (full servo motor)

CI Flexo Printing Machines Applications and Materials

XINXIN is the supplier of 90% of paper bag machine supporting printers in China. It is suitable for different types of printing materials, including film, paper, cardboard, etc. It can provide excellent printing results and is especially suitable for a wide range of packaging and labeling materials.

Process Materials

Paper

Cardboard

Textiles

Film

Metallic Film

Packaging Products

Advertising & Promotional Materials

E-commerce & Logistics Packaging

Customized E-commerce Packaging

Pharmaceutical Packaging & Labeling

Food Pouch Packaging

Personal Care Packaging

Janitorial Packaging

faq

We have the most professional solutions to our customers' problems

What is the color registration accuracy of your CI Flexo Presses, and how is it maintained?

Our CI Flexo Printing Machines guarantee a high-precision color registration accuracy of ≤±0.1mm. This is maintained through an advanced automated system controlled via touch screen and joystick micro-adjustment, ensuring perfect alignment even at speeds up to 250m/min.

Do your machines support non-stop operation during material roll changes?

Yes, we offer double-station automatic rotating roll change systems (both unwinding and rewinding) that enable non-stop production. This significantly reduces downtime and boosts overall efficiency for continuous printing jobs.

What materials are compatible with your flexographic printing machines?

Our machines are highly versatile and can print on a wide range of materials, including paper, film, non-woven fabric, and woven bags. The printing width and configuration can also be customized to meet specific production needs.

Can the central drum be customized for different printing requirements?

Yes. We offer both standard single-wall and optional double-wall central drums with a water chiller for temperature control. Additionally, inter-color drying ovens are available for enhanced drying performance between printing units.

After-sales service

Xinxin provides comprehensive technical support and after-sales service. Through professional training, remote diagnosis, and quick repair, we ensure that our customers can maximize production efficiency and reduce equipment downtime.

Fast response

Spare parts stock

Specialized commissioning and repairs/p>
