Hydraulic clamping
EPC ultrasonic webguide system
Air shaft type double station automatic non-stop rotation roll change
Single-station pneumatic unwinding
| Type | XXCI-A | XXCI-B | XXCI-C | |
| Printing material | Paper | Plastic film | Non-woven fabric woven material |
|
| Color unit | 4,6,8 | 4,6,8 | 4,6,8 | |
| Max.Printing material width | 1000mm,1300mm Customizable | 1000mm,1300mm Customizable | 1000mm,1300mm Customizable | |
| Max.Printing width | 960mm,1260mm | 960mm,1260mm | 960mm,1260mm | |
| Max. Rewinding/unwinding diameter | 1300mm | 600mm | 800mm | |
| Printing length range | 230-1000mm | 230-1000mm | 230-1000mm | |
| Pring speed | 250m/min | 250m/min | 250m/min | |
| Register precision | ≤±0.1mm | ≤±0.1mm | ≤±0.1mm | |
| Plate thickness (according to customer requirements) |
⚫ | ⚫ | ⚫ | |
|
Unwinding unit |
|||
| Shaftless single-station unwinding: Hydraulic clamping, hydraulic lifting, and hydraulically adjustable unwind width with left and right movement. 5.5kW servo frequency motor automatically controls tension. EPC ultrasonic webguide system 1300mm Maximum unwind diameter: 1300mm |
⚫ | 〇 | 〇 |
| Air shaft type double station automatic non-stop rotation roll change servo frequency motor automatically controls tension. EPC ultrasonic webguide system The roll changing cutter adopts motor-Inching changing The rotation type is worm gear motor rotation Maximum unwinding diameter is 600mm |
〇 | ⚫ | ⚫ |
| Optional single-station loading and unloading motor inching lift Maximum unwinding diameter is 1000mm |
◓ | ◓ | ◓ |
| Single-station pneumatic unwinding 5.5kw servo frequency motor automatically controls tension EPC ultrasonic webguide system Maximum unwinding diameter is 800mm |
〇 | 〇 | ⚫ |
| Traction unit | |||
| 2.2kw frequency motor with PLC synchronous control | ⚫ | ⚫ | ⚫ |
| Piston cylinder high precision control valve controls tension | ⚫ | ⚫ | ⚫ |
| Printing unit | |||
| Ceramic anilox roller: Laser engraved ceramic coated anilox roller, line count to be determined | ⚫ | ⚫ | ⚫ |
|
Ceramic Anilox Roller: Laser-engraved ceramic-coated anilox roller, line count to be determined. Plate Roller: Hydraulically advances and retracts the plate. Automatically separates the plate and applies ink during shutdown, and automatically advances the plate for printing upon startup. When the machine is stopped, the hydraulic cylinder pushes the anilox roller away from the plate roller, and the plate roller leaves the center roller, but the gears are still engaged. When the machine is turned on again for printing, it will automatically reset, and the color registration/printing pressure will remain unchanged. Closed scraper system Closed-circuit membrane pump PLC control: operated by touch screen |
⚫ | ⚫ | ⚫ |
| Single-layer central drum | ⚫ | ⚫ | ⚫ |
| Optional Double-walled central drum (including water cooler) Equipped with color group drying oven |
◓ | ◓ | ◓ |
| Still image: Observing color registration at high speed | ⚫ | ⚫ | ⚫ |
| Drying unit | |||
| 2 groups of hot air circulation oven heating | ⚫ | ⚫ | ⚫ |
| Rewinding unit | |||
| Friction rewinder with Backrest Through hydraulic unloading, equipped with 3-inch air shaft 5.5kW servo frequency motor automatically controls tension. Maximum winding diameter is 1300mm |
⚫ | 〇 | 〇 |
| Air shaft type double station automatic non-stop rotation roll change servo frequency motor automatically controls tension. EPC ultrasonic webguide system The roll changing cutter adopts motor-Inching changing The rotation type is worm gear motor rotation Maximum winding diameter is 600mm |
〇 | ⚫ | ⚫ |
| Optional single-station loading and unloading motor inching lift Maximum winding diameter is 1000mm |
◓ | ◓ | ◓ |
| Single-station pneumatic rewinder 5.5kW servo frequency motor automatically controls tension Maximum unwinding diameter is 800mm |
〇 | 〇 | ⚫ |
Hydraulic clamping, hydraulic lifting, and hydraulically adjustable unwind width with left and right movement.
5.5kW servo frequency motor automatically controls tension.
EPC ultrasonic webguide system
Maximum unwind diameter: 1300mm

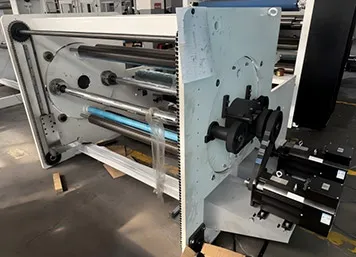

Air shaft type double station automatic non-stop rotation roll change
Servo frequency motor automatically controls tension.
EPC ultrasonic webguide system
The roll changing cutter adopts motor-Inching changing
The rotation type is worm gear motor rotation
Maximum unwinding diameter is 600mm

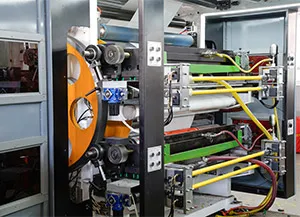

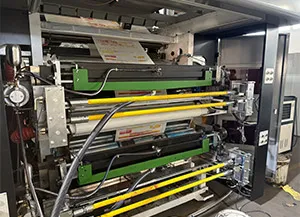

Ceramic Anilox Roller: Laser-engraved ceramic-coated anilox roller, line count to be determined.
Plate Roller: Hydraulically advances and retracts the plate. Automatically separates the plate and applies ink during shutdown, and automatically advances the plate for printing upon startup.
When the machine is stopped, the hydraulic cylinder pushes the anilox roller away from the plate roller, and the plate roller leaves the center roller, but the gears are still engaged. When the machine is turned on again for printing, it will automatically reset, and the color registration/printing pressure will remain unchanged.

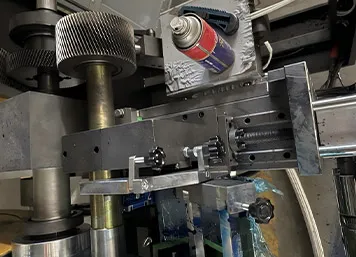

High-precision guide rails are used for forward and backward sliding
Closed scraper system
Ink transport motor: Automatic ink transport when the machine is stopped to prevent ink from drying up
Closed-circuit membrane pump
Color registration system: Control the color registration through inching and touch screen, and fine-tune the color registration with hand joystick
PLC control: operated by touch screen

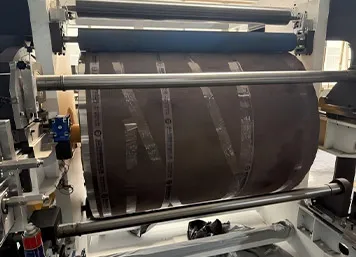

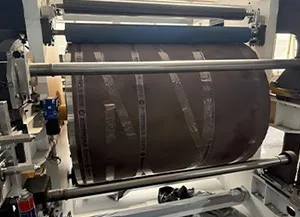

Double-walled central drum (including water cooler)
Equipped with color group drying oven
1.Mainly used for printing machines flexographic to complete the plate assembly operation.
2.Adhesive plate with more exact place.
Fast response
Spare parts stock
Specialized commissioning and repairs/p>
