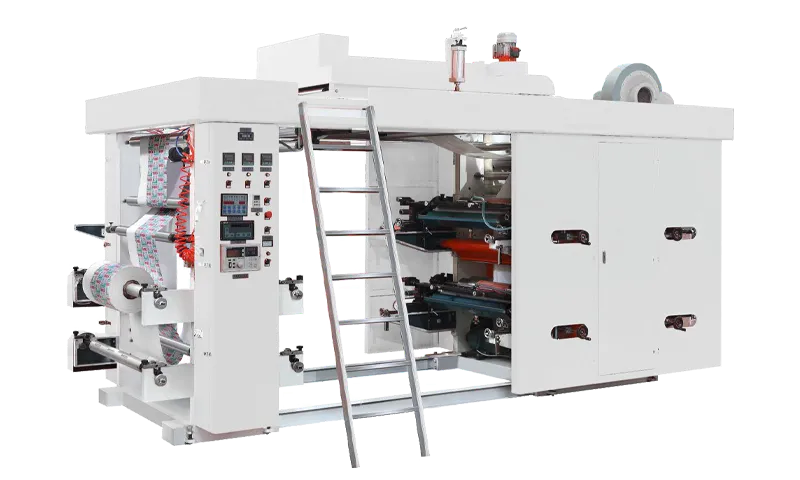

Automatic Roll to Roll 4 Color Stack Plastic Film Flexo Printing Machine

Introducing the GYT4 model, a stack type flexo press that redefines versatility in the printing industry. With the ability to handle a myriad of substrates and applications.

Final Product

Please Choose

Advertising & Promotional Materials
E-commerce & Logistics Packaging
Customized E-commerce Packaging
Pharmaceutical Packaging & Labeling
Food Pouch Packaging
Personal Care Packaging
Janitorial Packaging

Primary Materials

Please Choose

Paper
Film
Cardboard
Metallic Film
Textiles

Printing speed

m/min

Description

GYT4 model is the go-to solution for short to long print runs. Its innovative design allows for quick color changes and easy setup, making it perfect for the most demanding label and packaging jobs.

Stack Type Flexo Press

Ability to Handle a Myriad of Substrates and Applications

Quick Color Changes

Easy Setup

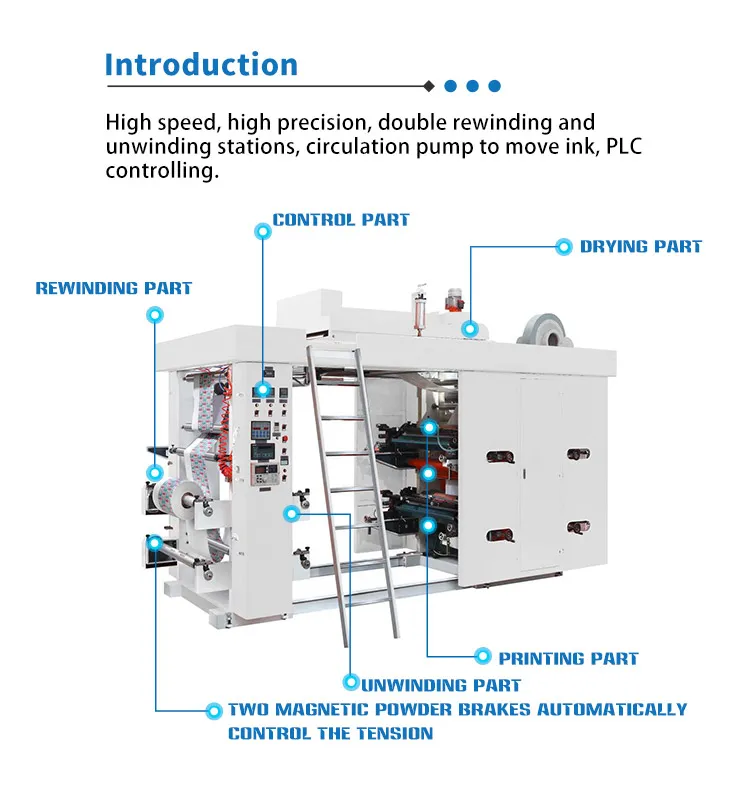

Composition

Specification

TYPE	GYT4-800	GYT4-1000	GYT4-1200
COLOR	4	4	4
Max. printing material width	800mm	1000mm	1200mm
Max. printing width	760mm	960mm	1160mm
Max. unwinding diameter	600mm	600mm	600mm
Max. rewinding diameter	600mm	600mm	600mm
Printing length range	230-1000mm	230-1000mm	230-1000mm
Printing speed	5-100m/min	5-100m/min	5-100m/min
Register precision	±0.15mm	±0.15mm	±0.15mm
